Toyota 3.4L Twin Turbo Dual-Injected Hybrid Engines

BG Platinum® Fuel System Service

BG AE03 Intake Adaptor, PN E101-1541
BG AE08 Hybrid Inline Adaptor, PN E101-5566

INSTRUCTIONS

Wear safety goggles to protect your eyes.
Wear Nitrile®, Neoprene® or PVC gloves to protect your hands.
Wear a long-sleeved shirt to protect your arms.

IMPORTANT! Read product Safety Data Sheet before use. Make sure this service is performed in a well-ventilated area.

CAUTION! Never use a throttle depressor to keep the engine above idle during service.

  1. Add BG Platinum® 44K® to fuel tank.
  2. For best results, add BG Platinum® 44K® to a full tank of gas. If the tank is not full, fill it up after the service.
  3. Fill supply tool with BG Platinum® Air Intake, Valve & Combustion Chamber Cleaner.

    CAUTION! This cleaner will damage paint and certain plastic materials.
  4. Verify the BG AE08 Hybrid Inline Adaptor, PN E101-5566, is tightly attached to supply hose.

  5. Verify the BG AE03 Intake Adaptor, PN E101-1541, is tightly attached to the AE08 inline adaptor.
  6. Attach the 7/16″ jumper hose to the AE03 adaptor.

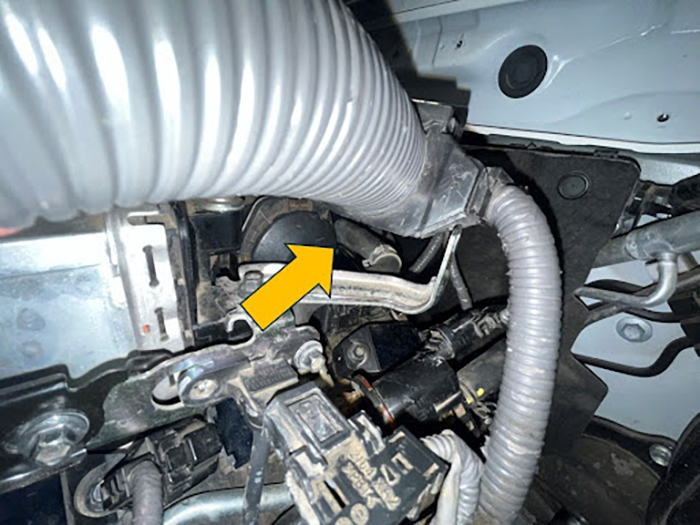

  7. Locate and remove vacuum line from intake port.

  8. Connect the adaptor to the intake port using the supplied jumper hose.
  9. Rotate adaptor vent cap so arrow is pointing upward. Make sure air flow is not restricted and the holes on the adaptor remain uncovered.

  10. Start engine and allow vehicle to warm up to operating temperature.



    NOTE: When you start the engine with the door open, you will get a prompt that says “Vehicle will automatically turn OFF if parked for 1 hour.”  Select “Keep Vehicle ON.”


  11. Install the BG Rev-It® (PN E101-4110) into the vehicle.  Follow the on screen instructions to ensure the vehicle is being revved to 3500 RPM throughout the Platinum service.  If the BG Rev-It® is not available, the vehicle MUST be revved manually following the “IMPORTANT” steps below!

    IMPORTANT! While performing the service, rev the engine (snap throttle) quickly three times every 45 seconds to a target RPM of 3,500. This will ensure that any cleaner accumulation has cleared. If the vehicle revs cannot be raised above 2,500 RPM during the snap throttle or the vehicle does not return to idle, the service should not be performed.

    Warning! Failure to rev the vehicle during the service may result in engine damage!
  12. Open ball valve on supply hose.
  13. The adaptor will administer 22 oz. (650 mL) of cleaner in 35–55 minutes depending on engine vacuum. When supply tool is empty, close ball valve and allow the engine to idle for 15 minutes.

    Note: If the engine starts running poorly or stalls during or after the service, it may be necessary to clear the engine learned values with a scan tool. After the values have been cleared, test drive the vehicle before proceeding with a second can of product or returning the vehicle to a customer.

  14. Remove the adaptor and reinstall vacuum line.
  15. Immediately test drive the vehicle for at least 15 minutes to clear any residual product.

    NOTE: If the vehicle cannot be driven after the service, the vehicle must idle for 30 minutes to clear any residual product.

    Warning! Failure to test drive or idle the vehicle after service may result in engine damage.
  16. Clear any codes that may have been set.
