Hyundai 2.0L Non-turbo Hybrid Engines

BG Platinum^® Fuel System Service

BG AE03 Intake Adaptor, PN E101-1541

BG AE08 Hybrid Inline Adaptor, PN E101-5566

INSTRUCTIONS

Wear safety goggles to protect your eyes.

Wear Nitrile®, Neoprene® or PVC gloves to protect your hands.

Wear a long-sleeved shirt to protect your arms.

IMPORTANT! Read product Safety Data Sheet before use. Make sure this service is performed in a well-ventilated area.

CAUTION! Never use a throttle depressor to keep the engine above idle during service.

Add BG Platinum® 44K® to fuel tank.
For best results, add BG Platinum® 44K® to a full tank of gas. If the tank is not full, fill it up after the service.
Fill supply tool with BG Platinum® Air Intake, Valve & Combustion Chamber Cleaner.

CAUTION! This cleaner will damage paint and certain plastic materials.
Verify the BG AE08 Hybrid Inline Adaptor, PN E101-1566, is tightly attached to supply hose.

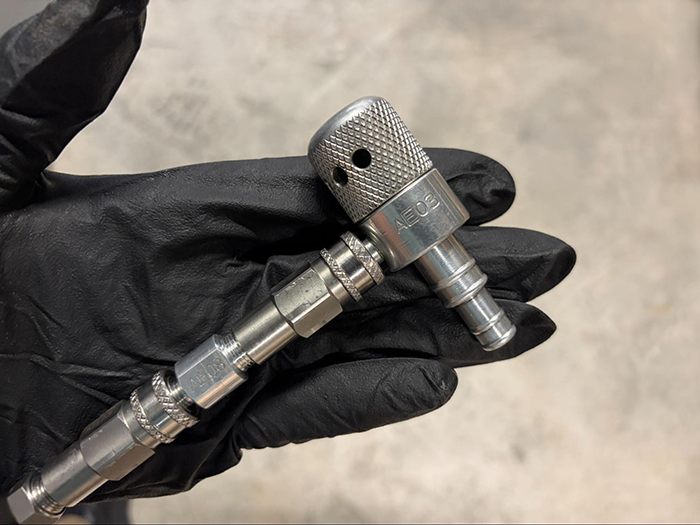

Verify the BG AE03 Intake Adaptor, PN E101-1541, is tightly attached to the AE08 inline adaptor.

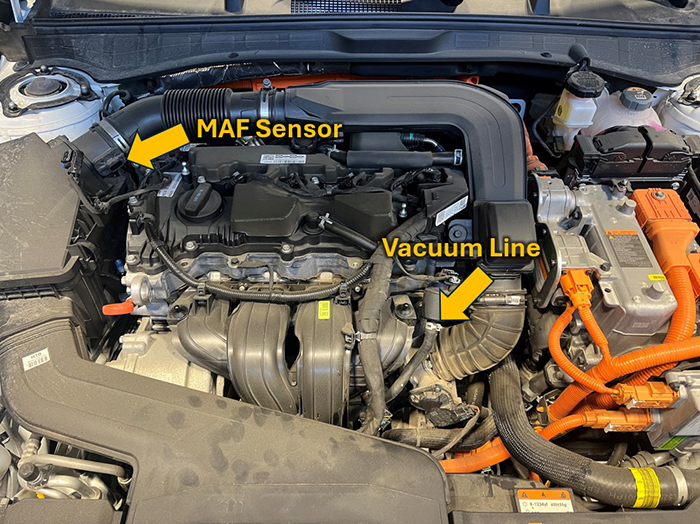

Locate and unplug the MAF sensor.

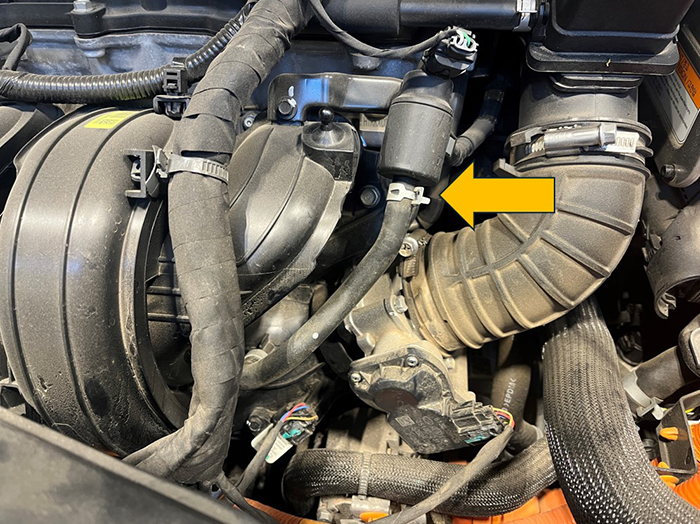

Locate and remove the vacuum hose from the purge valve.

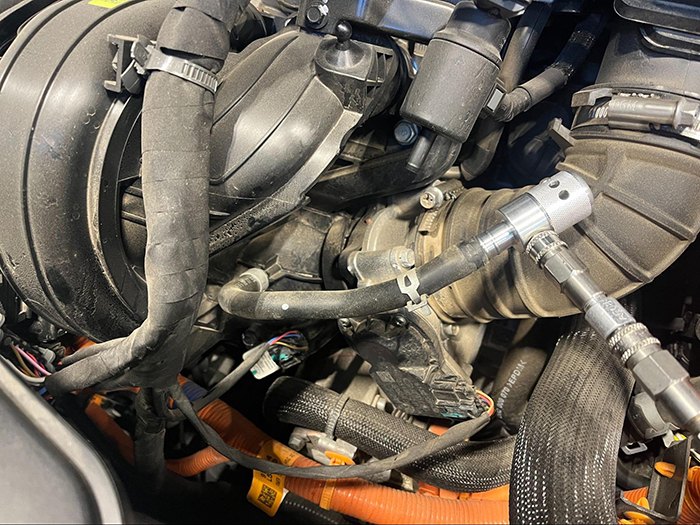

Insert the AE03 adaptor into the vacuum hose.
Rotate adaptor vent cap so arrow is pointing upward. Make sure air flow is not restricted and the holes on the adaptor remain uncovered.
Place the vehicle into maintenance/service mode, start the engine and allow vehicle to warm up to operating temperature.
Open ball valve on supply hose.

Note: The engine may auto shut off after 30 minutes. If this happens during the service, turn the chemistry off, place the engine back into maintenance/service mode, and continue the service.
The adaptor will administer 22 oz. (650 mL) of cleaner in 35–50 minutes depending on engine vacuum. When supply tool is empty, close ball valve and allow the engine to idle for 15 minutes.
Remove the adaptor and reinstall vacuum hose to the purge valve.
Plug the MAF sensor back in.
Immediately test drive the vehicle for at least 15 minutes to clear any residual product.

NOTE: If the vehicle cannot be driven after the service, the vehicle must idle for 30 minutes to clear any residual product.
Warning! Failure to test drive or idle the vehicle after service may result in engine damage.
Clear any codes that may have set.
