US PATENT 11,624,316 B2

PN E101-2645
INSTRUCTIONS
Wear safety goggles to protect your eyes.
Wear Nitrile®, Neoprene® or PVC gloves to protect your hands.
Wear a long-sleeved shirt to protect your arms.
  1. Locate a vacuum line that leads to the intake manifold. (Finding a vacuum line that enters the intake in a central location is optimal.)
  2. Disconnect vacuum line. Install the barbed end of the BG AeroCone into the open end of the vacuum line.
  3. Start vehicle and bring to operating temperature.
  4. Insert straw of the aerosol product into the application end of the BG AeroCone.

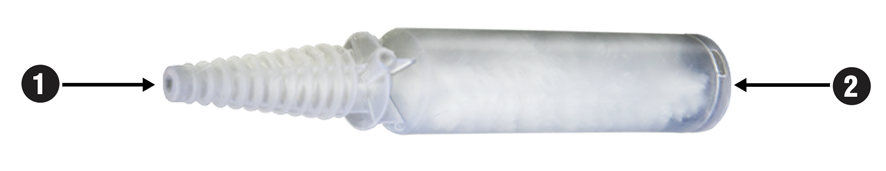

    E101-1642
    1. Barbed end
    2. Application end
  5. Apply the aerosol product in short bursts. Be sure not to stall the engine.
    NOTE: All engine designs will vary, adjust the duration of the bursts accordingly.
  6. Apply product for one minute. After one minute, stop spraying and remove straw from the BG AeroCone. Place aerosol away from the vehicle.
  7. Rev the engine (snap throttle) quickly three times every 45 seconds to a target RPM of 3,500.
  8. Repeat steps 5 through 8 to dispense remainder of aerosol.
  9. Let engine idle for 15 minutes.
  10. Immediately test drive the vehicle to clear any residual product. Clear any codes that may have set.
R01
©copyright 2023 BG Products, Inc. • Wichita, Kansas 67213
